    868 915 MHz FPC Antenna 1.13 Cable Antenna with Spring IPX IPEX Connector

    Ask Lasest Price
    Brand Name : YUNDING
    Model Number : YDFPC-004
    Certification : ROHS
    Price : negotiation
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 300000 Piece/Pieces per Day
    Delivery Time : 4-15 work days
    • Product Details
    • Company Profile

    868 915 MHz FPC Antenna 1.13 Cable Antenna with Spring IPX IPEX Connector

    868MHz 915MHz FPC Antenna 868MHz Spring IPX IPEX 1.13 Antenna IPEX Antenna 850-1850MHz

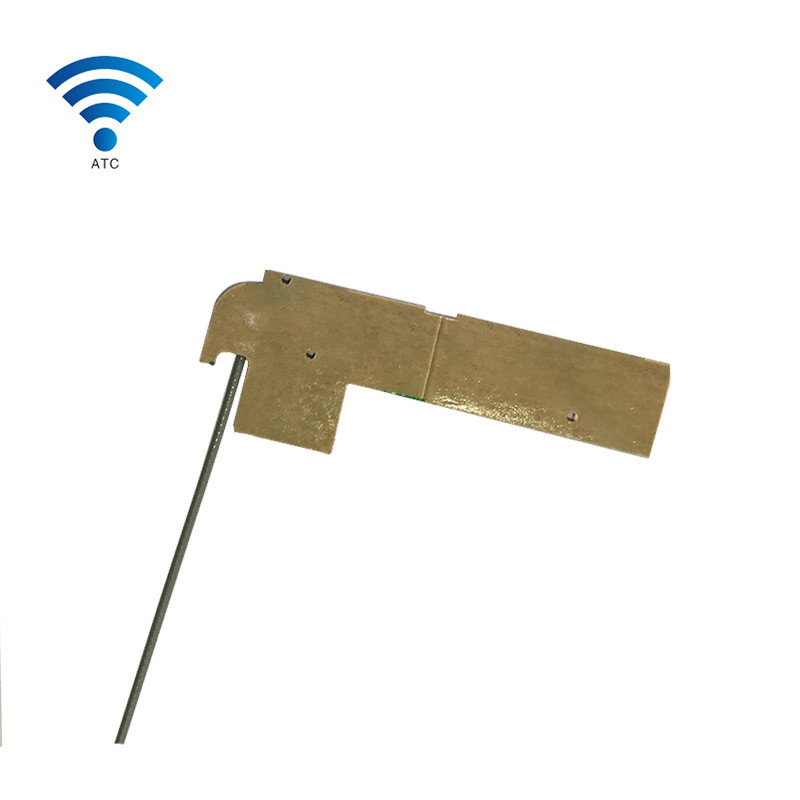

    868MHz 915MHz FPC Antenna

    Description:

    • Frequency range 824M-960MHz
    • Gain: 3dbi ± 0.7dbi
    • Standing wave ratio: <= 2
    • Impedance: 50ohm
    • Connector Model: IPX13
    • Length: 12CM
    • Size: 35MM * 12MM

    868MHz Spring IPX IPEX 1.13 Antenna

    Description:

    • Frequency: 868MHz
    • Gain: 2DBi
    • Standing wave ratio / S.W.R.≤2.0
    • Impedance: 50Ω
    • Max Input powet: 50W
    • RF Cable: RG1.13 cable
    • Cable OD: 1.1mm
    • Length:12cm

    IPEX Antenna 850-1850MHz

    Description:

    • Frequency:850-960/1710-1880MHz
    • Type: U.FL to Female SMA
    • Impedance: 50 ohms
    • Gain: 2DBi


    Environment performance test

    Project


    Test conditionTest results

    Storage environment


    Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpaElectrical and mechanical performance normal
    High and low temperature testHaving 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality.Measurement satisfied with electrical and mechanical performance normal.
    Resistance constant hot and humid testRelative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality.Measurement satisfied with electrical and mechanical performance normal.
    Vibration testVibrate Frequency:10-55HZ;
    Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times
    Vibration test
    Fall testFrom 1m height fall down 3 times freely (vertical direction)Electrical and mechanical performance normal

    868 915 MHz FPC Antenna 1.13 Cable Antenna with Spring IPX IPEX Connector


    Application


    1. Smart Phone


    2. POS Machine


    3. GSM / CDMA / 3G Mobile Phone System


    Advantage:

    1. The function, shape and color are optional.

    2. Once producing, our QC will check every link, we promise that we will give you the best products.

    3. One by one testing to ensure that each parts performance are excellent.

    4. In good condition, can be used in a wide range of signal with long life and high relibility.


    Packaging Details
    • Unit Type: lot (2 pieces/lot)

    • Package Weight: 0.03kg (0.07lb.)

    • Package Size: 5cm x 2cm x 1cm (1.97in x 0.79in x 0.39in)


    FAQ:

    • Is there any tracking Number for my item?

      Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

    • Is the product same as photos?

      Yes, all photos are real. We took these photos by ourselves.


    • Which size can fit me?

      We suggest you look at our size suggestion chart below and our product size chart if you are normal figure. if you have special figure, please contact us ( tell us your height and weight, bust, waist, hip size ).


    • Can you declare lower value?

      Yes, usually we'll declare $10-$20 for small parcels (1-5 pcs). If you have special request please contact us.


    • I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

      Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to
      us, we will give you the best price, thanks!
