Brand Name : | YUNDING |
Model Number : | YDWIFI-004 |
Certification : | ROHS |
Price : | negotiation |
Payment Terms : | Western Union, T/T, MoneyGram |
Supply Ability : | 300000 Piece/Pieces per Day |
Delivery Time : | 4-15 work days |

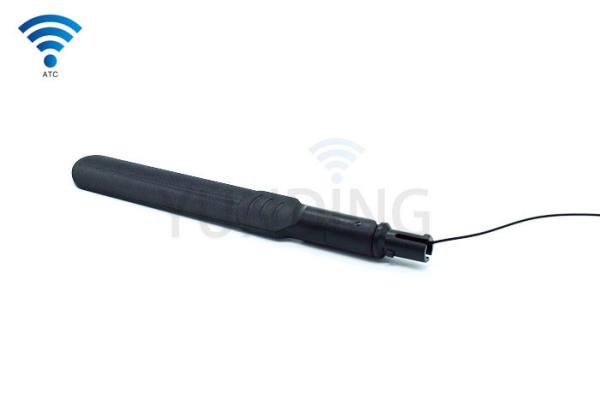

SMA Antenna External Indoor 433MHz Directional Antenna Waterproof Antenna Wireless Antenna
Product Description | |
Electrical Specification | |
Characteristic Impedance | 50Ω |
Frequency range | 433MHz |
VSWR | ≤2.0 |
Gain | 5dBi |
Input Connector | SMA |
Temperature Range | -40~+90ºC |
Material And Plating | |
Body | TPEE |
SMA Body | Brass , gold plated |
SMA Center contacts | Phosphor bronze , gold plated |
Insulators | PTFE |
Environment performance test | ||
Project | Test condition | Test results |
Storage environment | Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa | Electrical and mechanical performance normal |
High and low temperature test | Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
Resistance constant hot and humid test | Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
Vibration test | Vibrate Frequency:10-55HZ; Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times | Vibration test |
Fall test | From 1m height fall down 3 times freely (vertical direction) | Electrical and mechanical performance normal |
