    Male and Female Coax Connectors SMA Connector Kits High Performance

    Ask Lasest Price
    Brand Name : YUNDING
    Model Number : YDRFCC-001
    Certification : ROHS
    Price : negotiation
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 300000 Piece/Pieces per Day
    Delivery Time : 4-15 work days
    • Product Details
    • Company Profile

    Male and Female Coax Connectors SMA Connector Kits High Performance

    0-8GHz SMA Connector Vertical Connection RF Coaxial Connectors for Board use

    Description

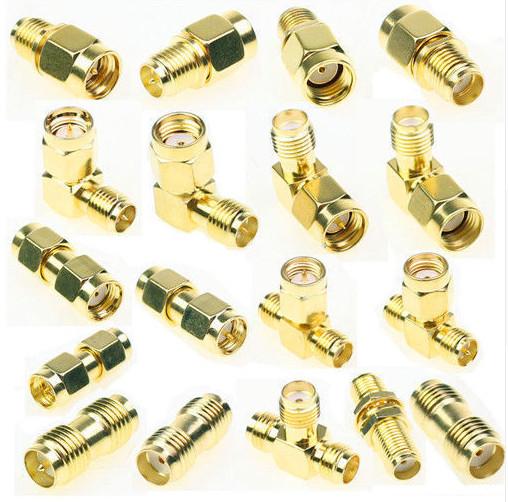

    Product include :

    18pcs different type SMA Connectors

    SMA Kits have 18 pieces connectors converters

    SMA right angle kits include 4 types:

    1. SMA male to SMA female 90 degree
    2. SMA female to RP SMA male 90 degree
    3. RP SMA female to RP SMA male 90 degree
    4. RP SMA Male To SMA RP SMA Female 90 degree

    Female to female kits include 4 types:

    1. SMA female to female barrel
    2. RP SMA female to RP SMA female barrel
    3. SMA female to RP SMA female barrel
    4. SMA female to female bulkhead

    Male to Male kits :

    1. SMA male to male
    2. SMA male to RP SMA male
    3. RP SMA male to RP SMA male

    ---------------------------------------------------------------------------------------------------------------------------------

    TIPS:


    • Normal SMA male - A pin center,thread inside
    • Normal SMA female - A hole in center,thread outside
    • RP SMA male - A hole in center,thread inside
    • RP SMA female - A pin in center,thread outside

    Frequency Range0-8GHz
    Gain6-8GHz
    Input Impendance50 ohm
    Maximum Input Power50W
    Working Temperature20-80%

    Environment performance test

    Project


    Test conditionTest results

    Storage environment


    Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpaElectrical and mechanical performance normal
    High and low temperature testHaving 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality.

    Measurement satisfied with electrical and mechanical performance normal.


    Resistance constant hot and humid testRelative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality.

    Measurement satisfied with electrical and mechanical performance normal.


    Vibration testVibrate Frequency:10-55HZ;
    Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times
    Vibration test
    Fall testFrom 1m height fall down 3 times freely (vertical direction)Electrical and mechanical performance normal

    Male and Female Coax Connectors SMA Connector Kits High PerformanceMale and Female Coax Connectors SMA Connector Kits High Performance


    Application :



    1. the connection between Board to Board



    2. It usually has vertical connection and right angle connection



    3. the connection between cable and device


    Our services:


    1. We are factory sales directly.


    2. 100% high quality, all failed parts get free warranty within 30 days after received.



    3. Accept 1 years warranty upon customer requirement.



    4. Unique designed package for you can be provided upon customer requirement.



    5. Special feature and service can be provided upon requirement.



    6. Delivery fastly 5-10 days can ship out.


    Our company:


    Shenzhen Yunding Communication Electronics Co.,Ltd. was established in September,2014.mainly


    specializing in the research ,development,produce and selling of multiple wireless terminal antenna .


    We boast a huge technical innovation capacity and an abundant reserve of knowledge on


    antenna.Moreover,we are featured by great innovation capacity in technical fields of high-low temperature


    test chamber,salt spray cabinet ,and OTA anechoic Chamber.and all of which have notably helped us


    fulfill product development in an efficient way.


    We are committed to high quality and stability of all products.strict quality control approaches always


    assure high and stable quality of our products and our services.
