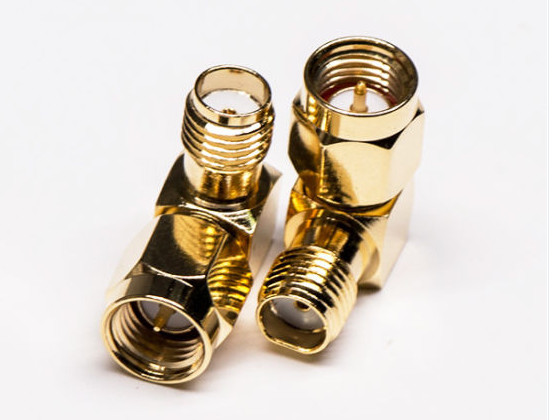

Right Angle Male SMA to Female SMA RF Switching Connector RF
Coaxial Connector
| Product Description | |
| Electrical Specification | |
| Characteristic Impedance | 50Ω |
| Frequency range | 0~6GHz |
| Working voltage | 170V(r ms) |
| VSWR | ≤1.5 |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Withstanding voltage | 1000V(r ms) |
| Contact resistance | Center conductor ≤10mΩ |
| Outer conductor ≤5mΩ |
| Durability | 500 Cycles |
| Temperature Range | -40~+90ºC |
| Material And Plating | |
| Body | Brass , gold plated |
| Center contacts | Brass , gold plated |
| Insulators | PTFE UL94-V0 |
Application :
1. the connection between Board to Board
2. It usually has vertical connection and right angle connection
3. the connection between cable and device
Our services:
1. We are factory sales directly.
2. 100% high quality, all failed parts get free warranty within 30
days after received.
3. Accept 1 years warranty upon customer requirement.
4. Unique designed package for you can be provided upon customer
requirement.
5. Special feature and service can be provided upon requirement.
6. Delivery fastly 5-10 days can ship out.
