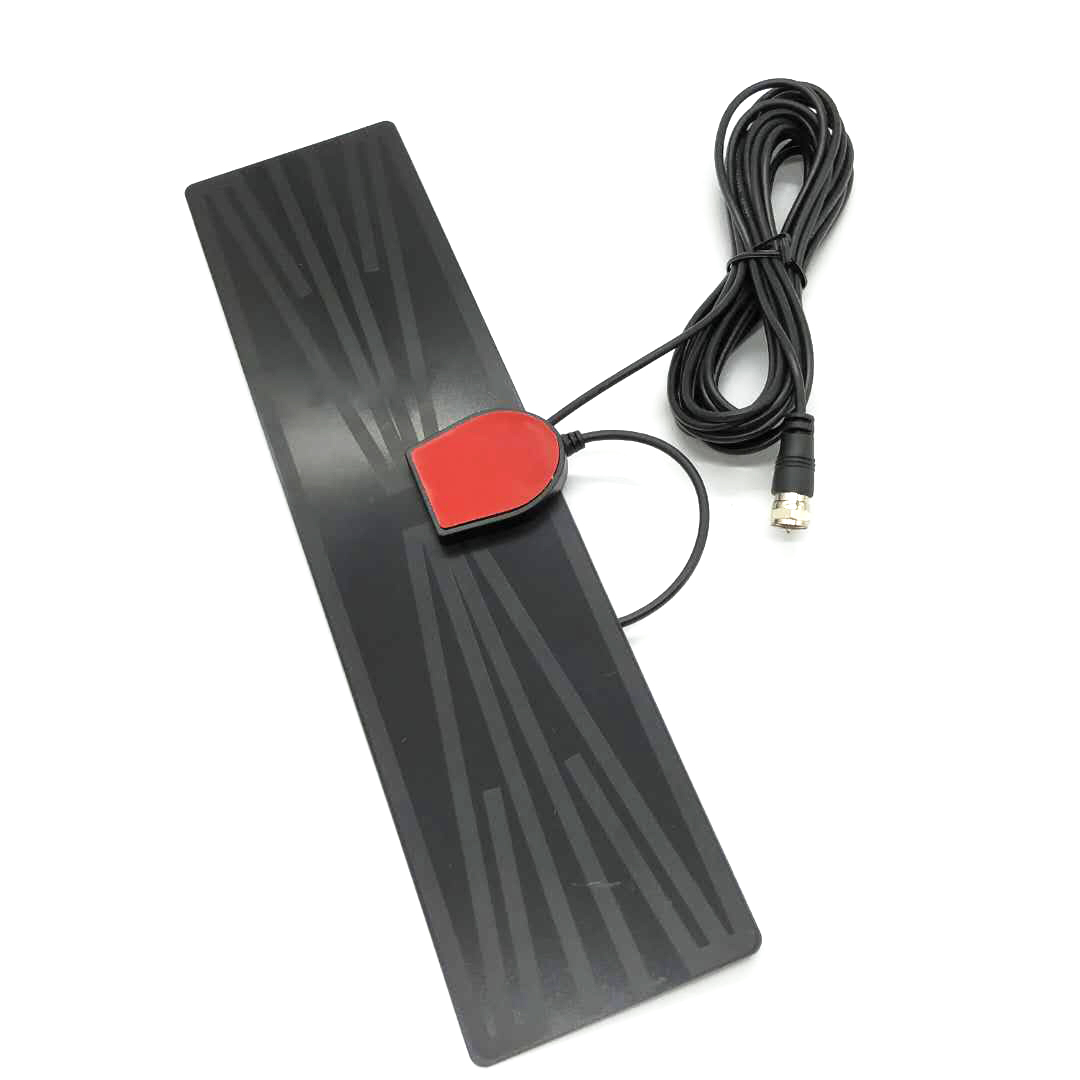

Black Thin HD Television Antennas F / IEC connector digital indoor
hdtv tv antenna
Specifications :
| Modle | Yunding TV-005 |
| VSWR | ≤ 1.5 |
| Gain | ≥30dbi |
| Supply power | 3V-5V 12V optional |
| Noise factor | ≤1.5dB |
| Power consumption | ≤15mA |
| Max Input power | 50W |
| Front to back Ratio | ≥ 15 dB |
| Lightning protection | DC ground |
| Polarization | Vertical |
| Frequency range | VHF174-230 / UHF470-862MHZ 75Ω |
| Fixed method | Plaste |
| Cable | RG174(1.5c-2v) |
| Connector | F-male |
Adjustment of antenna directions
• Connect the antenna to TV properly .
•Set TV to antenna mode.
•When the singal qualith is low ,adjust the location of the antenna
or rote it towards television station .
•You an watch the clear tv program until the signal quality gets
unproved.
More informarions about this products.
FREE HD Program for Life
Our HDTV Antenna can get access to your local news, weather,
sitcoms, kids and sports programs,
including ABC, CBS, NBC, PBS and more. Absolutely FREE forever.
50-80 MILES Long Range
Reception Range: 35 miles (60-80 miles with Amplifier) Generally,
the Antenna should be keep far from
disturbance source, air conditioner/refrigerator/microwave oven,
etc. Antenna amplifier is included to
provide added range and maximum signal reception for more channels
if you are far away from broadcast
towers. Importance: If a signal cant be received with the external
amplifier, remove the antenna amplifier
and try again.
Strong Signal Reception
Amplified indoor aerials with 50-80 miles and 1080P 4K/VHF/UHF/FM
stronger reception, detachable
amplifier booster and 13FT high performance coax cable .Amplified
aerial can be placed almost anywhere
in your home .
Ultra-Thin Design
The super soft, unobtrusively thin design and powerful reception
capabilities make this antenna a top
choice for any home.
Super Easy To Set Up
Step 1: Connect the antenna directly to HDTVs with HD tuners or
through a set-top box for TVs without HD
tuners.
Step 2: Place the television antenna in an optimal position,
usually on a wall or window.
Step 3: Scan for channels using your TV's 'Channel Search' and be
ready to enjoy free TV.
