Yunding Wholesale Mini Passive Internal Micro GPS Chip Antenna

Product Description

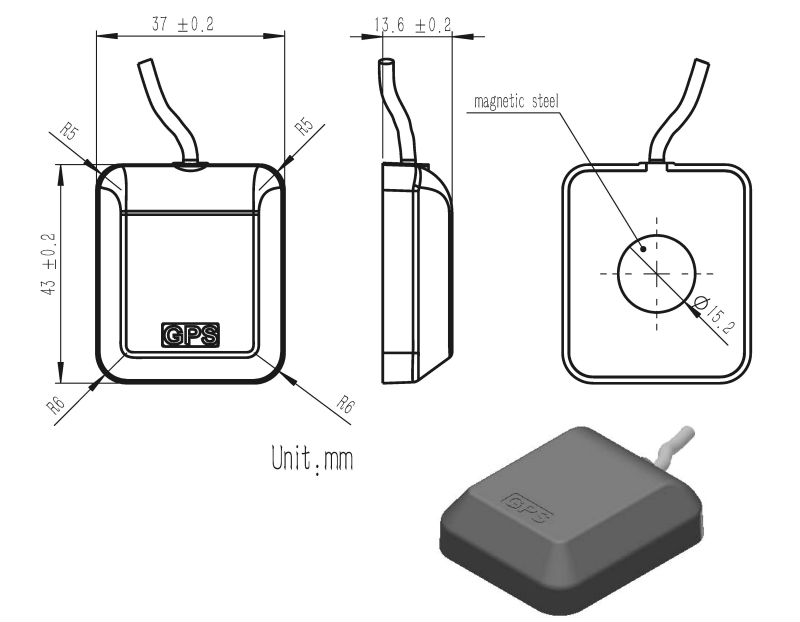

Structure
Antenna
1	Antenna model	2540A(25mm*25mm*4mm)
2	Frequency Range	1575.42MHz±1.02 MHz
3	V.S.W.R	<2.0
4	Band With@10dB	>10MHz
5	Gain	5.0 dB typ @70mm*70mm groundplane
6	Impendence	50Ω
	Polarization	RHCP
LNA
1	Frequency Range	1575.42MHz±1.02 MHz
2	DC Voltage	3.3±0.3V
3	DC current	11±2mA(@3.0V)
4	Gain	25±3 dB(without cable @25°C±10°C)
5	Output VSWR	2.0 MAX
6	Noise Figure	2.2 MAX
Overrall performance(Complete module including RF connector)
1	Frequency Range	1575.42MHz±1.02 MHz
2	DC Voltage	3.3±0.3V
3	DC current	11±2mA(@3.0V)
4	Gain	23 dB Typ
5	Noise Figure	2.2 MAX
6	Band With@10dB	>10MHz
7	V.S.W.R	<2.0
8	Impendence	50Ω

Material
No	Part Name	SPEC
1	Antenna	Dielectric Ceramics
2	PCB	FR4
3	Sheathing	ABS (black)
		43mm×37mm×13.6mm
4	RF Cable	RG174
		L=3m (or others)
5	RF Connector	SMA-MALE (or others)

Environment Condition
1	Working Temp	-40°C~+85°C, 10%~95% RH
2	Storage Temp	-55°C~+100°C, 10%~95% RH
3	Vibration	Sine sweep @1.5mmAM 10~55Hz each Axis
4	Waterproof	IP66

Testing Curve

Patch Simth& VSWR

Noise Figure

Patch Directional diagram

LNA Gain
